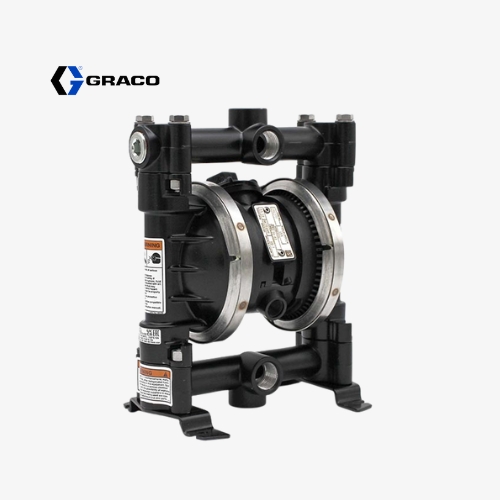

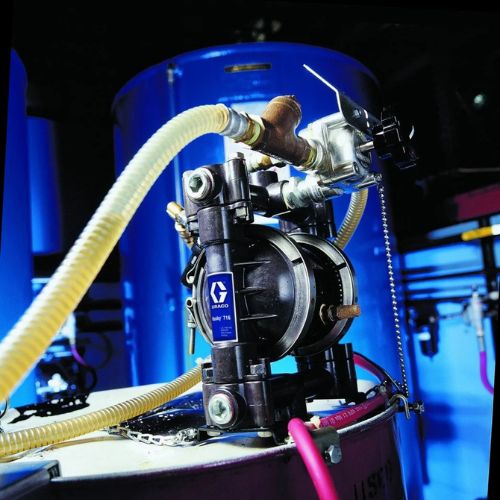

Graco Husky 716 adalah pompa pneumatic (udara) berkualitas tinggi yang dirancang untuk aplikasi industri seperti pelapisan, pelumasan, dan transfer cairan kental. Produk ini terkenal karena daya tahan, efisiensi tinggi, dan kemudahan perawatan.

Spesifikasi :
• Maximum fluid working pressure: 100 psi (7 bar, 0.7 MPa)
•Maximum free flow delivery* : 16 gpm (61 lpm)
• Maximum pump speed: 400 cpm
• Displacement per cycle**: 0.04 gallon (0.15 liter)
• Maximum suction lift : 15 ft (4.5 m) dry
• Maximum size pumpable solids : 0.09 in (2.5 mm)
• Maximum ambient operating temperature***: 180ºF (82ºC)
•typical sound level at 70 psi air
(4.9 bar, 0.49 MPa) air @ 200 cpm : 74 dBa
Maximum air consumption :28 scfm (0.672 m3/min)
• Air pressure operating range : 30 to 100 psi
(2.1 to 7 bar, 0.21 to 0.7 MPa)
• Air inlet size :1/4 npt(f)
• Air exhaust port size : 3/8 npt(f
• Fluid inlet & outlet size : 3/4 npt(f) or bspt(f)
• Weight : 8.5 lb (3.9 kg)
• Wetted parts (in addition to ball, seat and
diaphragm materials–which may vary by pump) : Aluminum, Stainless Steel, PTFE,
Buna-N, Santroprene, Zinc-Plated Steel
